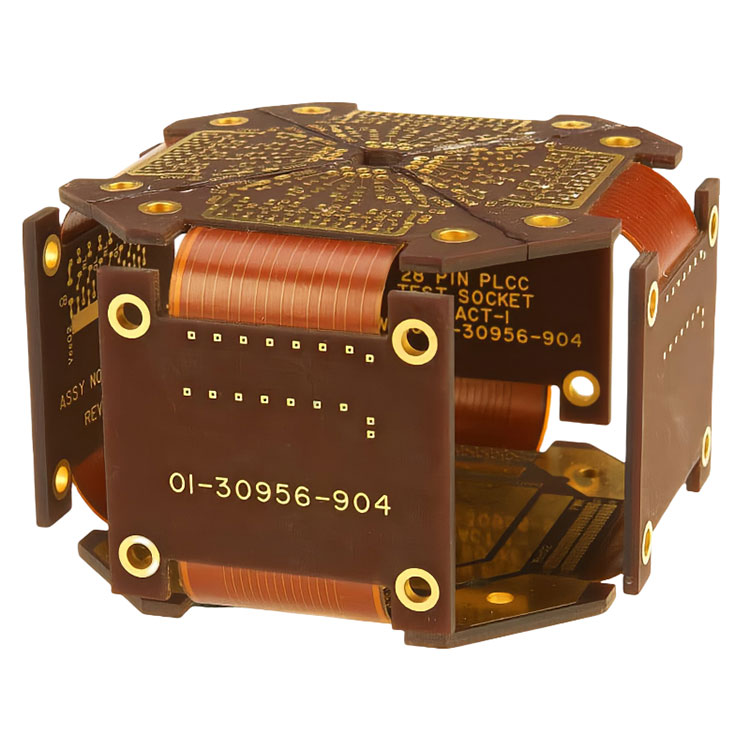

ELIC Rigid-Flex PCB

Our factory recently newest ELIC Rigid-Flex PCB more popular. The ELIC Rigid-Flex PCB is a composite of soft and hard boards, consisting of a thin layer of flexible material and a rigid bottom, which are then laminated into a single component to form the circuit board. China ELIC Rigid-Flex PCB is a multi-layer printed circuit board with both rigid and flexible layers. Stiff-flex bonded boards are widely utilized; however, due to the use of various materials and multiple production steps, the processing time for stiff-flex bonded boards is longer and the production cost is higher.

Send Inquiry

Product Description

Advanced ELIC Rigid-Flex PCB comprises a rigid layer, typically constructed from glass fiber reinforced epoxy resin material, and a flexible layer made of materials such as polyimide. This design confers upon the ELIC Rigid-Flex PCB the mechanical strength and stability characteristic of rigid boards, while also endowing it with the flexural and plasticity attributes associated with flexible circuit boards.You can buy ELIC Rigid-Flex PCB from our factory at wholesale.


Basic information:


Product name: ELIC Rigid-Flex PCB

Copper Thickness:0.5~9oz

Min. Hole Size:0.075mm

Min. Line Width:2mil

Min. Line Spacing:2mil

Surface Finishing:HASL(RoHS)Immersion Gold

Soldermask color:White, Black, Blue, Green, Grey, Red, Yellow, Transparent

Application:Electronics Device

Certificate:ISO/RoHS/TS16949

Layers:1~32Layers

Finger(Au):1~50U''

Max Panel Size:800*1200mm

Impedance Control:± 8%

HDI:Elic

Min Half Hole/Slot:0.3mm


Application range of ELIC Rigid-Flex PCB:


It mainly includes: aerospace, such as high-end aircraft mounted weapon navigation systems, advanced medical equipment, digital cameras, portable cameras and high-quality MP3 players. Rigid bonded plates are most commonly used in the manufacture of military aircraft and medical equipment.
