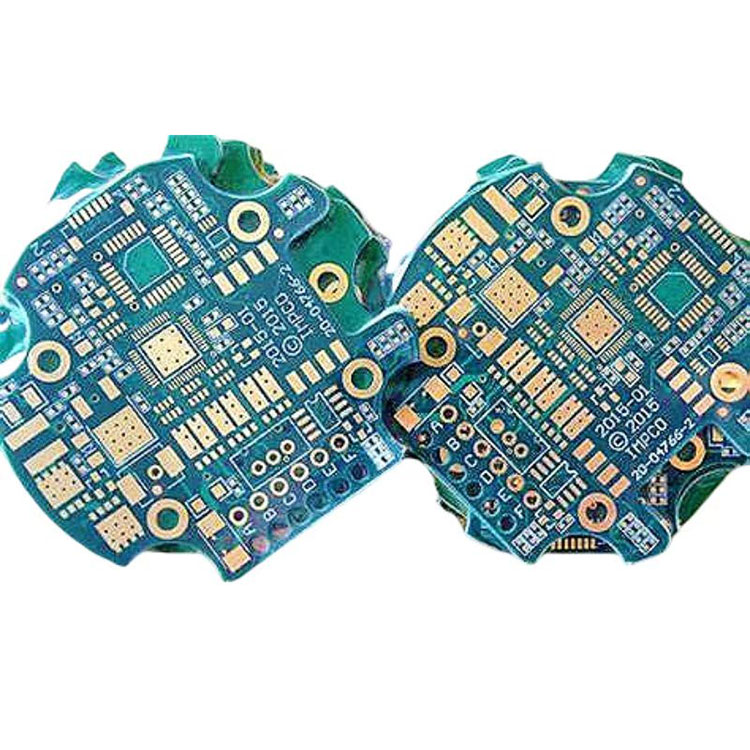

4 Layers PCB Board

The discount 4 Layers PCB Board is an electronic card, usually green in color, that provides four conductive layers to route electronic signals. 4 layers PCB Board refers to the printed circuit board is made of 4 layers of glass fiber. There are four wiring layers: Top layer, bottom layer, VCC, and GND. Generally, through holes, buried holes, and blind holes are used to connect the layers. There are more buried and blind holes than double-side boards. In addition, try not to run signal track on the two layers of VCC and GND.

Send Inquiry

Product Description

4 Layers PCB Board are something that makers have long known about but almost never gotten involved with. However, with the introduction of China 4 Layers PCB Board prototyping facilities around the world, and widely available CAD packages, Wholesale 4 Layers PCB Board are now within the reach of makers. But what are four-layer boards and how can they help you with your next project?


Basic information:


Item Name: 4 Layers PCB Board

Copper Thickness: 0.5oz, 0.5-2.0oz

Min. Hole Size: 0.2mm

Min. Line Width: 0.1mm

Min. Line Spacing: 0.1mm

Surface Finishing: BGA,HAL(ROHS),Immersion Gold

Board Size: customized

Solder mask: Green,Black

Application: moblie phone,computer,air condition

Usage: OEM Electronics

Material: FR4 /aluminum/ceramic CEM1

Type: Electronic Board

Layer: 1~24 Layers


4 Layers PCB Board Capability:


Provide free DFM Checking , We can suggest 4 layer PCB stack-up

Copper Thickness: Max to 6 oz inner copper, 12 oz outer copper

Min Hole: 0.15mm by mechanical drilling 0.1mm by laser

PCB Thickness :0.4mm – 6.5mm

Surface Process: Immersion gold ,HASL-LF,Hard Gold,Immersion Tin

Soler Mask: Green Yellon White Black or custom

Accept 4 layer PCB with Blind or buried hole
